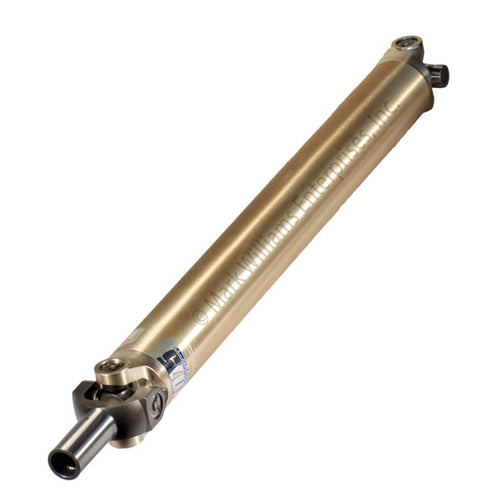

3.5" Aluminum 7075 Signature Series Driveshaft (1350 Ujoint)

MW Masterline Aluminum Driveshafts are built from 6061 aluminum and welded. Each driveshaft is custom built to length an specifications. These driveshafts are precision built, assembled, and balanced using in house machined components.

Special assembly fixtures guarantee proper weld yoke phasing during assembly. Every shaft is electronically high speed balanced considering your maximum RPM requirements, with the transmission yoke to ensure vibration-free operation.

Features:

• 3.5" 6061 .125" thick wall tubing

• High Strength End yokes machined in house from forged aluminum

• Precision Balanced
• Includes 1350 Non Greasable Ujoint
• Made in the USA

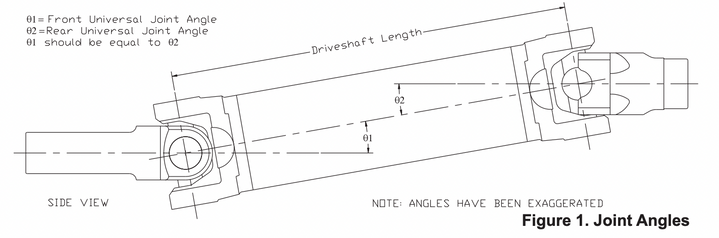

How to measure your driveshaft: Click Here

Transmission yoke required for balancing (yoke not included in price)

Shop transmission Yokes: Click Here

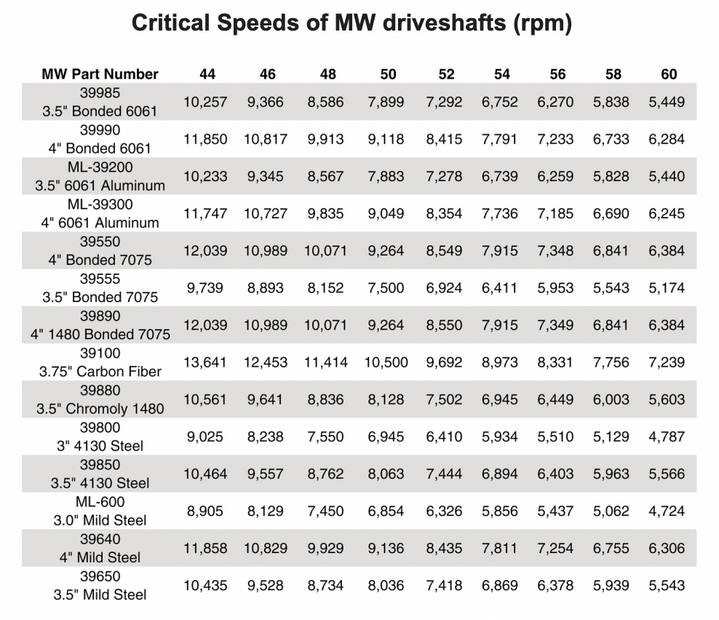

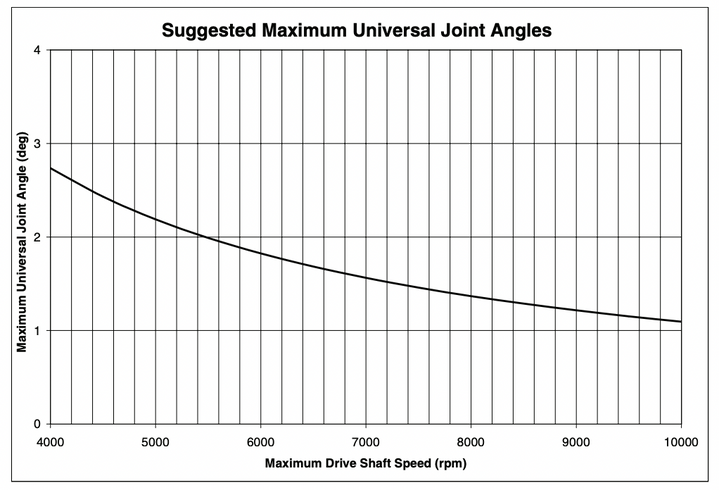

Check service bulletin # 0049 for operating limits and critical speed charts.
