5/8" Steel Stud / Steel Lugnut Kit (2" shoulder) 51560

5/8 - 18 Steel Axle Drive Stud Kit, 4" Overall Length / 2" Shoulder Length

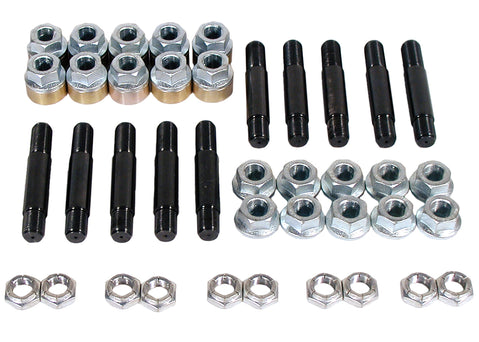

Included:

• (10) 5/8-18 steel studs 4" overall length / 2" shoulder length
• (10) Steel Encapsulated Bearing Nuts (choose washer thickness)
• (10) Self Locking Jam Nuts

The steel axle drive stud is designed so the 11/16" diameter shoulder on the stud is used to center the wheel, rather than the lug nut used with smaller studs. This system dramatically increases shear strength and eliminates bent wheel studs. These studs require 5/8"-18 threaded holes in the axle flange. Drive studs are then secured in the flange with a jam nut.

Wheels are held in place with a steel bearing encapsulated lug nut with silver zinc plating. The integral aluminum washer snaps on to the nut and spins freely, but will not separate from the nut, preventing accidental loss. The nuts have washer thickness options of 31/6", 3/8", 9/16", 3/4" that make them equivalent to using a standard nut and washer combination of equal thickness.

Dimensions for this part

A = 4", B = 1-3/16", C = 2", D = 13/16"
