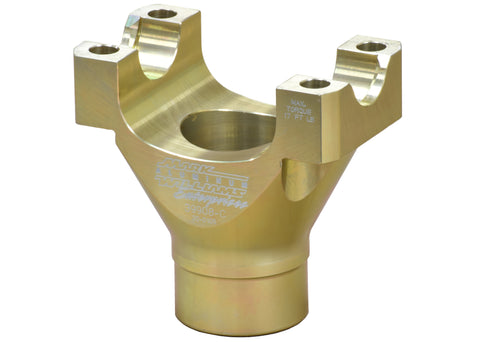

Ford 9" 28 spline 1350 Series Ultralight 7075 Aluminum Pinion Yoke

Mark Williams Ultralight 7075 billet aluminum pinion yokes offer a high strength and lightweight pinion yoke option for your rear differential. This Ford 9" style yoke is designed to work with a 28 spline pinion. All machining is done in relationship to the spline pitch diameter to ensure each yoke is symmetrical for balance and smooth operation.

Features

• Ford 9" w/ 28 spline pinion
• 28 spline yoke
• Heat treated 7075 aluminum

• Mark Williams signature gold plating for corrosion resistance
• 1350 U-Joint

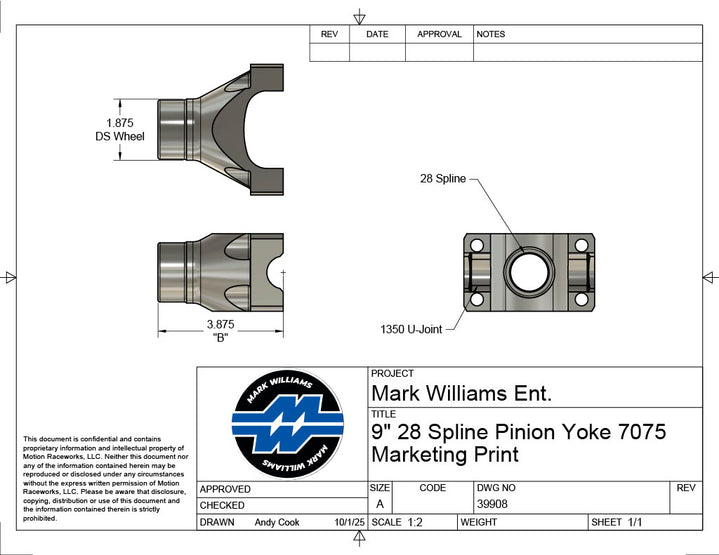

• 3.875" End of Pinion Yoke to U Joint Center (B dimension)
• 2.125" seal diameter
• Utilizes 2.187" ID driveshaft collar : Click Here For Options

• Weight 1.0 lbs
• Made in the USA

Utilizes 1350 billet steel cap kit (39112) for added strength. Add in options below or Click Here to view
