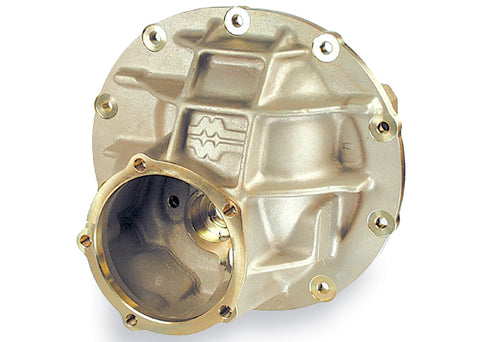

9" Ford Standard Aluminum Case 3.062" Bearing w/ Billet Aluminum Caps

Mark Williams Ford 9" cases are cast in the USA, machined in the USA, and assembled in the USA. Undergoing high tolerance machining, strict quality control with automated CMM measuring, these cases are designed to perform out of the box!

The MW Aluminum case is based on the MW nodular case design and is cast from the same A206 material used in the MW thru-bolt cases, but does not have the additional reinforcing and heavier walls of a thru-bolt case. The case should only be used in lighter drag racing and street applications. The MW Light Weight case is 5 lbs. lighter than a thru-bolt case and over 15 lbs. lighter than an OEM nodular case. It can also be used in street or oval track applications.

7075 billet aluminum caps are utilized with billet steel adjusters and 7/16" pinion support stud kit are included.

Instructions: Click Here

Details:

• Carrier Bearing Bore Size: 3.062"
• Pinion: Standard
• Bearing Cap Material: 7075 Anodized Aluminum
• Case Material: A206 Heat Treated Cast Aluminum

• Pinion Support Hardware: 7/16 studs, washers, nuts included
• Weight 11.5lbs
