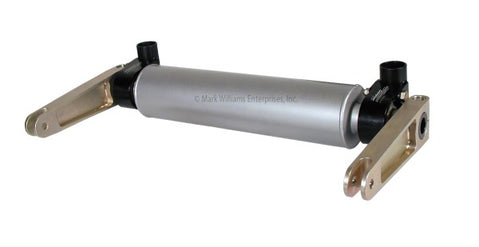

Anti-Rollbar XHD 3" Tube Assembly w/ 6" Aluminum Billet Arms

Mark Williams XHD anti roll bar assembly features a combination of parts to build the ultimate anti roll bar. With spherical bearings to mount to the chassis and an oversized diameter 3" tube which resists torsional bending paired with billet splined arms, this anti roll bar is up to the task.

Features:

• 16" long 3" OD .083" wall 4130 chromoly steel center tube section
• 1.50" OD splines
• Max width of 24" arm centers
• 5" billet aluminum arms
• Spherical bearing self aligning style mounting system

Linkage kit sold separately: Click Here

***The tube is not welded and can be cut and welded to make your required width.***

For custom width needs, please call for availability. (866) 508-6394

Note Uses 35203 bearings
