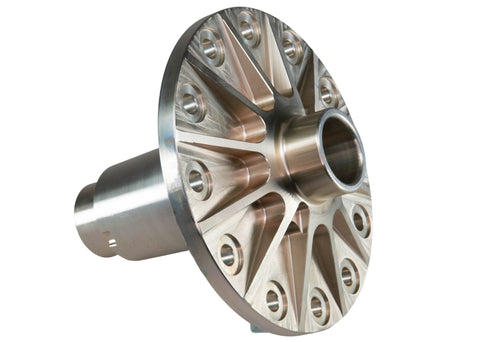

Dana 60 40 spline aluminum spool

Mark Williams aluminum spools are up to the task to reduce rotating weight, without sacrificing strength. MW aluminum spools are machined from 7075-T6 aluminum alloy forgings and hard coat anodized for durability. Aluminum spools are approximately half the weight of the profile milled steel spools and are successfully being used in Pro Stock, Comp, Super Comp, Super Gas and Stock eliminator, Superstock cars and many more.

The Mark Williams Advantage

• Ring gear mounting diameter is ground to precise press fit
• All mounting diameters concentric and square within .001"
• Increased cross section and generous radius under mounting prevents deforming
• Made in the USA!

MW 40-spline aluminum spool allows the super light gun drilled axles in the Dana 60™ rear. Due to the large spline, 58505 wheel bearings and proper housing ends are required for use with 4 series gears (4.56 to 7.17 Dana™ gear) (4.10 to 7.17 other manufacturers' gear). Manufactured from aluminum forgings. 8 lbs.

*Dana 60™ is a trademark of Dana Limited. MW products are not manufactured or authorized by Dana.

Instructions: Click Here

Features:

• Cut for 40 spline axles
• 7075 Aluminum
• Uses 1/2" bolts
• Weighs 8 lbs
• Made in the USA

Note: We recommend replacing ring gear bolts every time a new gear is setup. The correct bolts for this spool are MW PN 53900
