Powerglide Roller Tail Slip Yoke 1350 27 Spline Extended Extreme Duty 4340Powerglide Roller Tail Slip Yoke 1350 27 Spline Extended Extreme Duty 4340

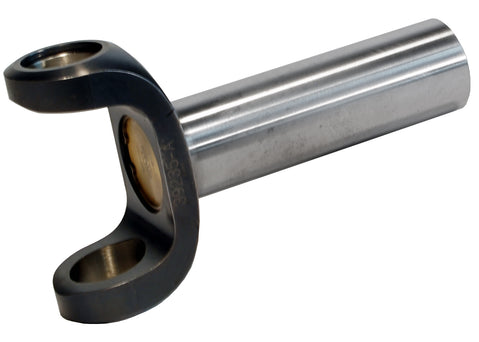

Powerglide Roller Tail Slip Yoke 1350 27 Spline Extended Extreme Duty 4340

Mark Williams

SKU: 39235

$219

Racing Use Only, Not Legal for Road Use

Mark Williams Extreme Duty transmission slip yokes are machined from high strength 4340 steel and thru hardened in house for ultimate strength. All machining is done in relationship to the spline pitch diameter to ensure each yoke is symmetrical for balance and smooth operation.

Applications

  • Powerglide roller tail housings including but not limited to
    • Dedenbear
    • Reid
    • FTI
    • ATI
    • BTE
    • Coan
    • JW

Features

  • Long Barrel Design
  • Machined from 4340 high strength steel
  • Thru hardened for ultimate strength
  • 27 spline missing one spline
  • 1.499" diameter
  • 4.625" barrel length
  • Machined in relationship to spline for perfect balance and smooth operation
  • Uses 1350 series U joint

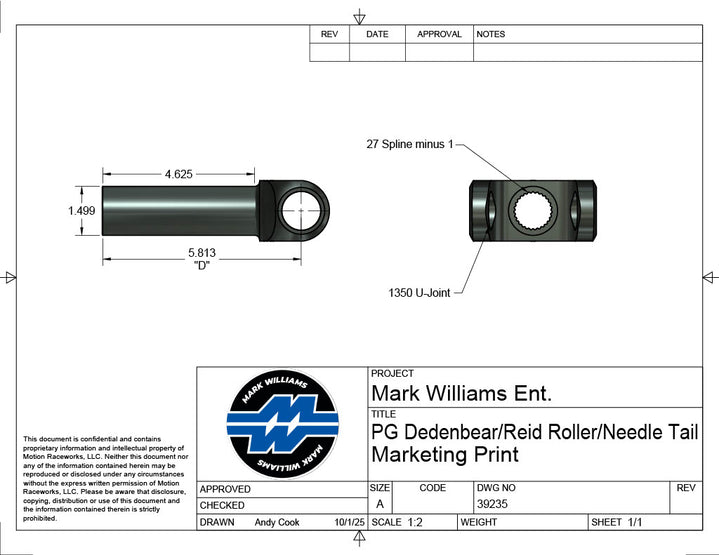

  • End of yoke to center of ujoint, "D" = 5.8125"
  • Made in the USA
  • Weight 2.53 lbs

Note: The shorter head and extra-long barrel allows this yoke to be shortened ti increase lengths for suspended dragster driveshafts. The longer driveshaft length is beneficial in reducing the universal joint operating angles.
