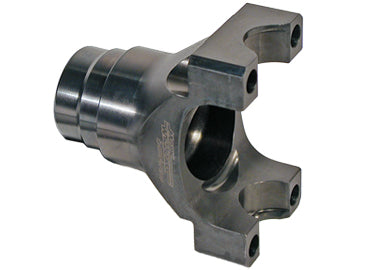

GM 12 Bolt 1350 Series Extreme Duty 4340 Billet Steel Pinion Yoke

Mark Williams Extreme Duty 4340 billet steel yokes offer ultimate strength for your pinion yoke which is a high stress area on any rear differential. This GM 8.5 1350 style yoke is designed to work with 30 spline pinion. All machining is done in relationship to the spline pitch diameter to ensure each yoke is symmetrical for balance and smooth operation.

Features

• Fits GM 12 10 Bolt rear ends
• 30 spline yoke
• High strength 4340 steel construction
• Thru Hardened for ultimate strength
• Black Oxide finished
• 1350 U-Joint
• 3.187" End of Pinion Yoke to U Joint Center (B dimension)
• Utilizes 2.187" ID driveshaft collar : Click Here For Options
• Weighs 2.18 lb
• Made in the USA

Utilizes 1350 billet steel cap kit (39112) for added strength. Add in options below or Click Here to view
