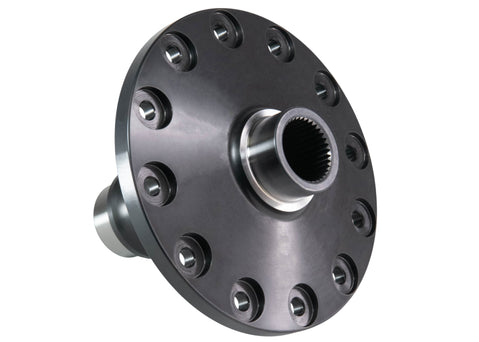

GM 12 Bolt 35 spline MW steel spool 3/8" bolts (3.062" Bearing)

Mark Williams steel spools are precision machined from US Made 4140 steel forgings on CNC machinery for ultimate precision and accuracy. The ring gear register and bearing diameters are precision ground with the spool mounted on a special arbor to assure concentricity between the splines and the ground surfaces and final ground to ensures zero runout on the ring mounting surface. Engineered for maximum reliability, MW spools have an increased cross-section under the ring gear register to prevent ring gear deflection. MW spools are heat treated in-house with the same austemper through hardening heat treat process as our strongest in class MW “Hi-Torque” axles for ultimate strength.

The Mark Williams Advantage

• Through hardened alloy steel, not egg-shell-thin hardened case
•  Ring gear mounting diameter is ground to precise press fit
• All mounting diameters concentric and square within .001"
• Increased cross section and generous radius under mounting prevents deforming
• Made in the USA! Forged, Ground, Machined, and Heat Treated in the USA!

 Uses 3/8 - 24 bolts. Manufactured from through hardened 4140 high strength steel. Fits Stock case with 3.062" Bearing Bore.

Note: requires MW C-Clip Eliminator kit or weld on housing ends and MW axles.

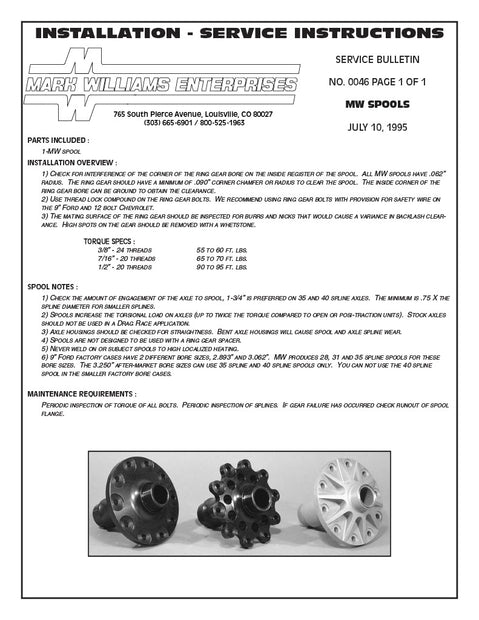

Instructions: SB0046

Features

• Cut for Mark Williams 35 Spline
• Works with 3.062" bearing carrier
• 4140 Through hardened steel
• Uses 3/8" bolts
• Weighs 14 pounds
• Made in the USA

Note: We recommend replacing ring gear bolts every time a new gear is setup. Correct MW part number for Ring Gear Bolts for this spool is 58900
