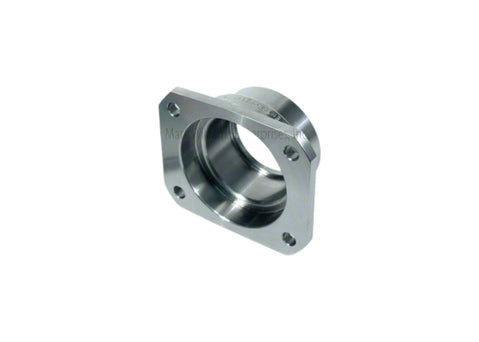

GM Large 10 Bolt Car 4130 Chromoly Housing Ends (3.150" Bearing)

GM 10/12 Bolt 4130 chromoly housing ends w/ 3.150" Bearing. This housing end was commonly found in mid-size Camaro, Chevelle type 10 or 12 Bolt, fits 58503 , 58504 , and 58505 sealed axle bearings. Made in the USA! Sold as a pair.

Installation Instructions: Click Here

For bearing retainer plates: Click Here

Sold as a pair.

Mark Williams housing ends provide an excellent way to narrow a rear end housing. They also allow increased axle strength by utilizing a larger wheel bearing compared to factory. The ends have a prevision for an inboard seal in the event of bearing leakage.

Mark Williams housing ends are different than the competition. We start with a heat treated 4130 forging for a stronger component. Most modern race rear ends are built using 4130 chromoly tubing for the housing, so keeping that strenght with the housing end is crucial. Simply put 4130 is chosen for its higher overall strength, toughness, and ductility so why risk using mild steel or 8620 in this high load situation?

Our ends are slightly longer than the other on the market, allowing for an inboard seal in case you have a leaky wheel bearing. Being further out the weld distortion doesn’t have an effect on the diameter for the bearing. Mark Williams housing ends are bored with a very slight taper that allows the housing end to distort slightly, but not get tight on the bearing. The difference is real!
