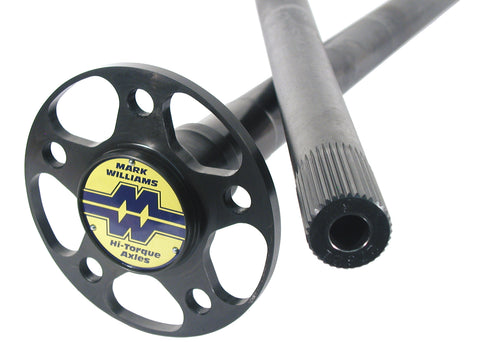

Hi-Torque Superlight 4340 40 Spline Drag Race Axles Pair (up to 24")

Mark Williams Ultimate 300M 40 spline Hi-Torque Axles are Forged, Machined, and Made in the USA.

MW Ultimate 300M axles have pocket lightened flanges for additional weight savings and use a proprietary 300M aircraft grade material making it possible to add a 1" gun drill through the entire length of the shaft without sacrificing strength. MW precision hones the bore to remove any possible stress risers. The additional machining done behind the MW name plate and revised axle profile helps achieve the 14.7 pound (45%) weight savings over MW Standard Hi-Torque axles.

MW Hi-Torque high strength axles are the perfect balance of strength and price. All MW axles are designed to have increased torsional and bending capacity. This is accomplished by offering the largest axle bearing diameter possible for your particular housing end and incorporating a tapered machining from the bearing journal to the spline.

Example weight: 17.3 pounds for a pair of 40 spline axles (no bearings and studs) fitting a 31" wide housing.

Features

• Flange Pocket Mill Lightened
• 11/16" gun drilled / honed axle bores
• Utilizes strong 300M Thru Hardened steel material
• 40 spline
• Forged and Machined in the USA
• Custom machined to your application
• Optional Dual stud pattern at no extra charge
• 5x4.5" and 5x4.75" options available (custom upon request)
• Price is per pair
• Bearings sold separately

Axle Bearings: Add in options

For Wheel Studs: Click Here

Get detailed information on what is needed to ensure that your new axles are a perfect fit on our How To Order Axles page.

After purchasing, please submit the following axle measurement form: Click Here

If you have questions, please feel free to email sales@markwilliams.com or call 1-866-508-6394 during business hours.

Installation Instructions: Click Here
