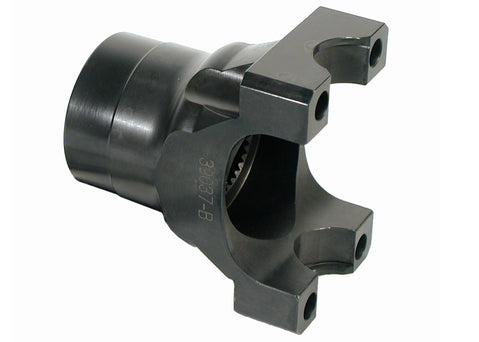

MW 12" 40 spline 1350 Series Ultralight 7075 Aluminum Pinion Yoke

Mark Williams Ultralight 7075 billet aluminum pinion yokes offer a high strength and lightweight pinion yoke option for your rear differential. This Mark Williams 12" style yoke is designed to work with 40 spline pinion. All machining is done in relationship to the spline pitch diameter to ensure each yoke is symmetrical for balance and smooth operation.

Features

• Mark Wiliams 12" rear ends
• 40 spline yoke
• Heat treated 7075 aluminum

• Black Anodized
• 1350 U-Joint

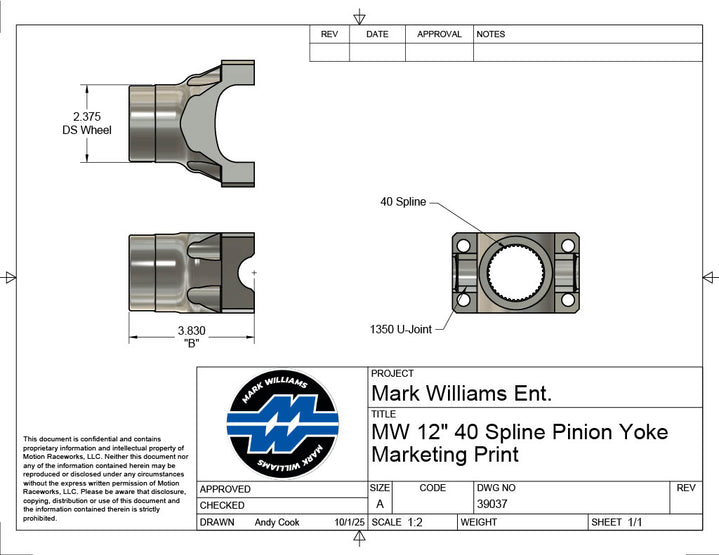

• 3.830" End of Pinion Yoke to U Joint Center (B dimension)
• Utilizes 2.187" ID driveshaft collar : Click Here For Options
• Weighs 2.5 lb
• Made in the USA

Utilizes 1350 billet steel cap kit (39112) for added strength. Add in options below or Click Here to view
