Pinion Support Kit Ford 9"/9.5" 35 spline Pinion Tapered/Ball Bearing (Aluminum)

Installation Instructions: Click Here

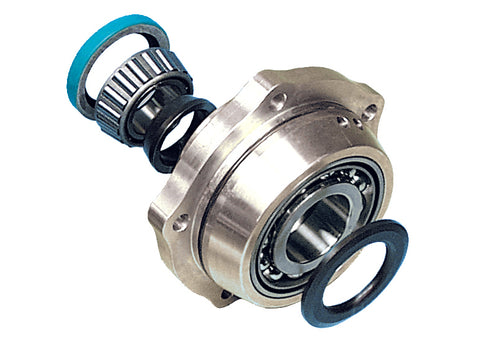

Mark Williams Billet Pinion Support Kit for 9"/9.5" Ford with 35 spline pro gear pinion. This kit is ready to install preset machined spacer. This kit includes everything needed for setup without shimming or setting preload with a crush sleeve.

Drilled for 7/16" studs to accomodate studs used in all MW cases. However, with special reducer bushings (p/n 57606) and studs (p/n 57609), the housing can be used with 9" Ford cases that have 3/8" threads.

For use with 9"/9.5" Ford 35-spline pro gears and include front tapered bearing and angular rear angular contact ball bearings.

All pinion supports come pre-assembled. The bearing pre-load is set through the use of a solid hardened pre-load spacer rather than a crush sleeve or stack of thin shims. The spacer is factory machined to the required preload for each assembly. Pinion seals are included. Stock Ford yokes must be shortened for proper pinion nut thread engagement.

Includes

• 7075 billet aluminum pinion support
• Front tapered bearing
• Rear angular contact ball bearing
• Solid Hardened Spacer factory machined preset
• Pinion seal

Optional: Upgrade to Ceramic Bearings in options
