Powerglide w/ roller bearing tailhousing 1350 27 Spline Extreme Duty 4340 - Quick Release

Mark Williams Extreme Duty transmission slip yokes are machined from high strength 4340 steel and thru hardened in house for ultimate strength. All machining is done in relationship to the spline pitch diameter to ensure each yoke is symmetrical for balance and smooth operation.

Rapid release yokes allow the driveshaft to be disconnected at the transmission rather than at the pinion. The cap design prevents over-tightening and possible damage to the u-joint cups. Care must be taken not to mix u-joint caps and maintain indexing after shaft is balanced. MW-built driveshafts with these yokes have identifying index marks.

Applications

• Powerglide roller tail housings including but not limited to
  • Dedenbear
  • Reid
  • FTI
  • ATI
  • BTE
  • Coan
  • JW

Features

• Standard design
• Machined from 4340 high strength steel
• Thru hardened for ultimate strength
• Shot peened for added strength
• 27 spline missing one spline

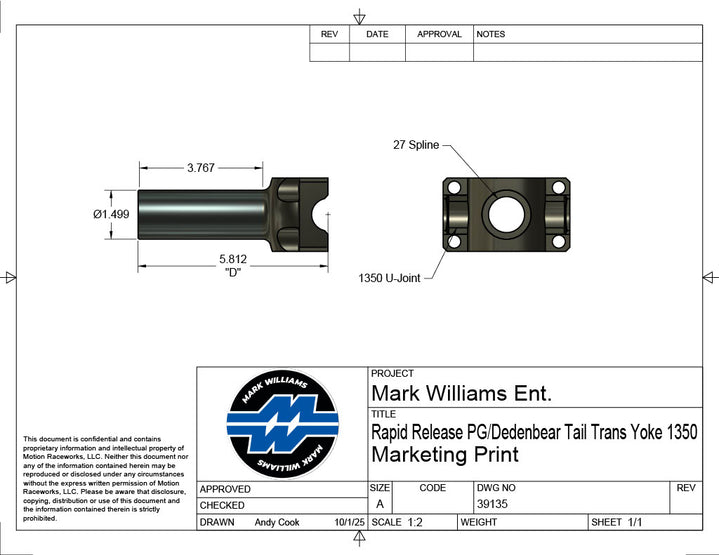

• 1.499" diameter
• 4.625" barrel length
• Machined in relationship to spline for perfect balance and smooth operation
• Uses 1350 series U joint
• End of yoke to center of ujoint, "D" = 5.8125"
• Made in the USA
