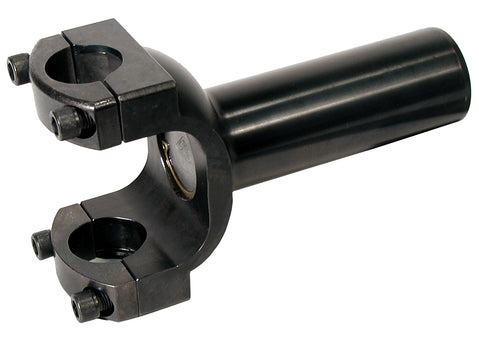

Mopar Slip Yoke 1350 30 Spline Extreme Duty 4340 - Quick Release

Mark Williams Extreme Duty transmission slip yokes are machined from high strength 4340 steel and thru hardened in house for ultimate strength. All machining is done in relationship to the spline pitch diameter to ensure each yoke is symmetrical for balance and smooth operation.

Rapid release yokes allow the driveshaft to be disconnected at the transmission rather than at the pinion. The cap design prevents over-tightening and possible damage to the u-joint cups. Care must be taken not to mix u-joint caps and maintain indexing after shaft is balanced. MW-built driveshafts with these yokes have identifying index marks.

Applications

• Mopar A833
• Chrysler 727 Torque Flight
• Doug Nash 5 speed
• Liberty transmissions

Features

• Quick release ujoint straps for easy maintenance
• Machined from 4340 high strength steel
• Thru hardened for ultimate strength
• Machined in relationship to spline for perfect balance and smooth operation
• 30 spline
• Uses 1350 series U joint

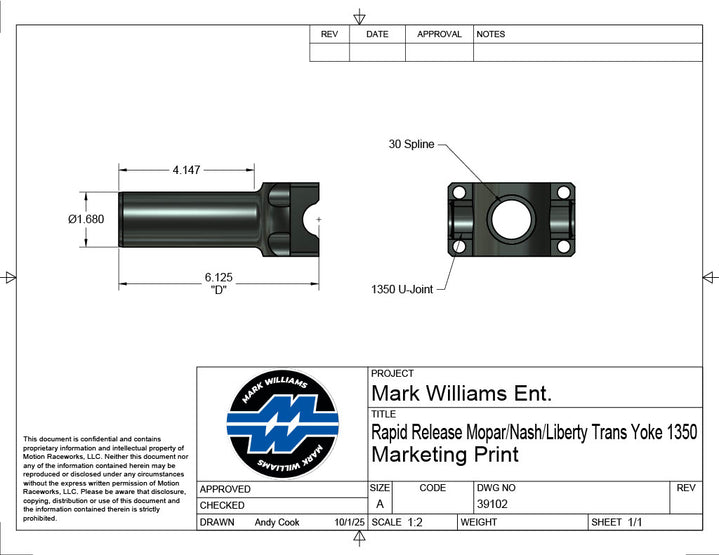

• 1.680" diameter slip section
• End of yoke to center of ujoint, "D" = 6.125"
• Includes 39075 cap kit
• Made in the USA
• Weight 3.12 lbs
