Updated Template for 9-1/2 & 10" Gear Face Plate Clearance
Mark Williams
SKU: 57459
$15
Racing Use Only, Not Legal for Road Use

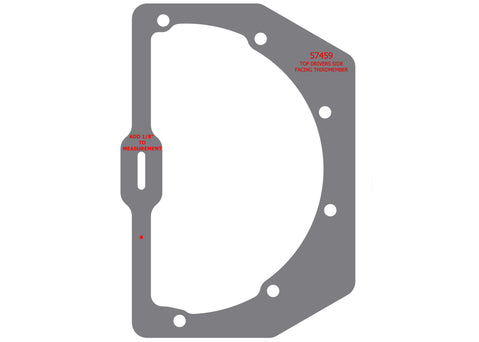

Template to gauge the clearance required on housings to accomodate a 10" ring gear
When installing a thirdmember assembly, it is important to check for proper clearance. The larger caps and/or the adjuster lock bolts can possibly come in contact with the back of some fabricated and stock Ford housings. This hard board template is available to make gauging a snap. This updated version features a center-locating slot to connect a tape measure to check the pinion center to the housing ends' dimensions.
